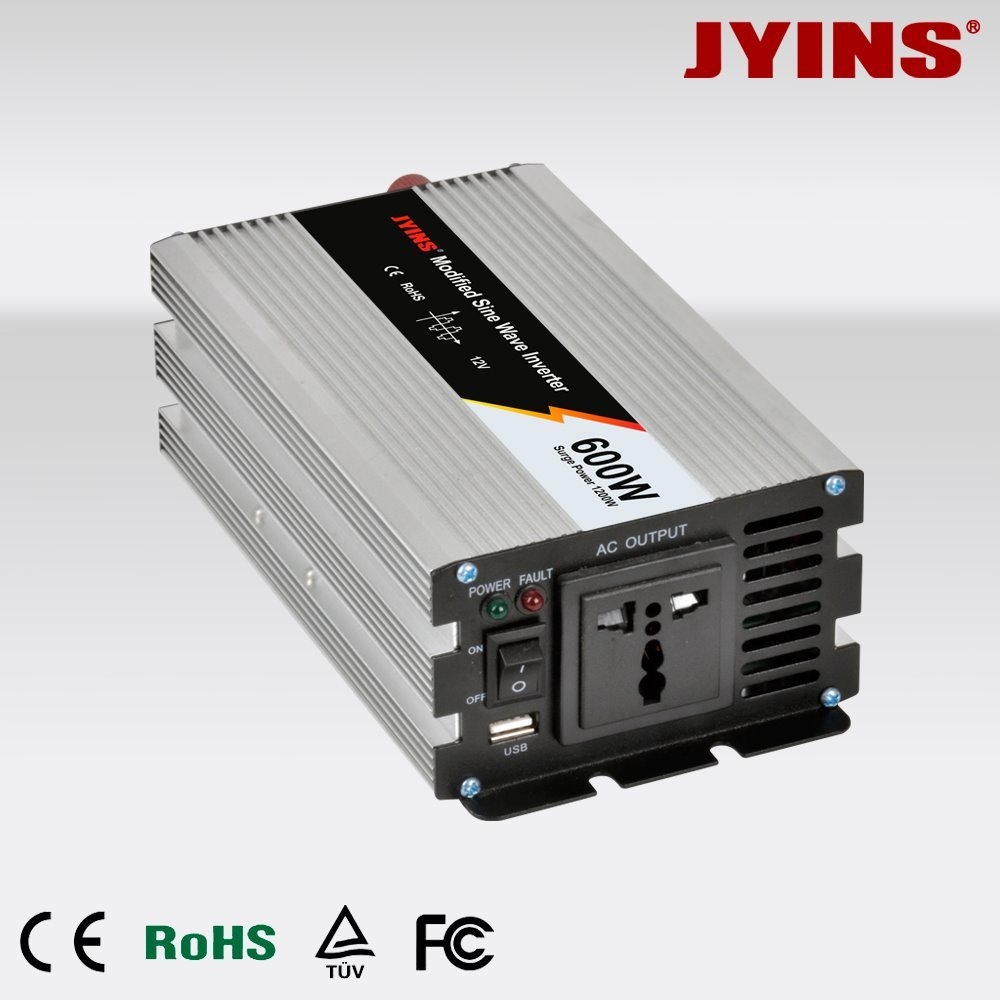

INVERSOR SOLAR JYM 600W O/MODIFICADA -12v

$7.697,81
Compartir

Model

JYM-600-1

JYM-600-1

JYM-600-1

JYM-600-2

JYM-600-2

JYM-600-2

Rated power

600W

Peak power

1200W

Input voltage

DC12V

DC24V

DC48V

DC12V

DC24V

DC48V

Output voltage

100VAC or 110VAC or 120VAC±5%

220VAC or 230VAC or 240VAC±5%

Unload current less than

0.3A

0.1A

0.1A

0.3A

0.1A

0.1A

Output frequency

50Hz±0.5Hz or 60Hz±0.5Hz

Output waveform

Modified Sine Wave

USB port

5V 1A

Max.efficiency

90%

Input voltage range

10-15.5V

20-31V

40-61V

10-15.5V

20-31V

40-61V

Low voltage alarm

10.5±0.5V

21±0.5V

42±1V

10.5±0.5V

21±0.5V

42±1V

Low voltage protection

10±0.5V

20±0.5V

40±15V

10±0.5V

20±0.5V

40±15V

Over voltage protection

15.5±0.5V

31±0.5V

61±1V

15.5±0.5V

31±0.5V

61±1V

Low voltage recover

12.3±0.5V

24±0.5V

48±1V

12.3±0.5V

24±0.5V

48±1V

Over voltage recover

14.8V±0.5V

29.5V±0.5V

59V±1V

14.8V±0.5V

29.5V±0.5V

59V±1V

Protection function

Low voltage

Alarm at first, voltage continously reduce. LED Red light on & shut sown.

Over voltage

LED Red light on, shut down

Over load

LED Red light on, shut down

Over temperature

Alarm at first, tempurature continously rise.LED Red light on & shut sown

Short circuit

LED Red light on

Input reverse polarity

Fuse burn-out

Working temperature

-10°- +50°

Storage temperature

-30°- +70°

Dimension(mm)

225x112x67mm

Packing(mm)

280x170x105mm

Net./gross weight(g)

1000/1350g

QTY/Ctn

20Pcs

Meas./Ctn(mm)

630x535x335mm

Gross weight/Ctn(g)

27000g

Warranty

1 years

Configuration

Standard

Cooling method

Intelligent air cooling

Iva Incluido
